EP-101 : Epitope Mapping
Test Introduction
Epitope is an antigenic determinant which is a structure recognized by an antibody. To confirm the binding position of the antigen and the antibody three analytical methods are performed. Generally, analysis methods are consist of Covalent labeling, Cross Link, Immuno-affinity peptide screening. Three types of analyses are used to determine the linear and conformational epitope positions of the antigen protein.
Epitope Mapping Process
Sample
- Biosimilar
- Biobetter
- Antibody
- Protein-protein interaction

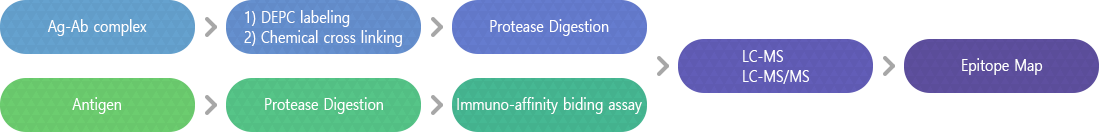

Analysis Process
- Ag-Ab complex
- 1) DEPC labeling
2) Chemical cross linking - Protease Digestion
- LC-MS
LC-MS/MS - Epitope Map
- Antigen
- Protease Digestion
- Immuno-affinity
biding assay - LC-MS
LC-MS/MS - Epitope Map
Analysis Result

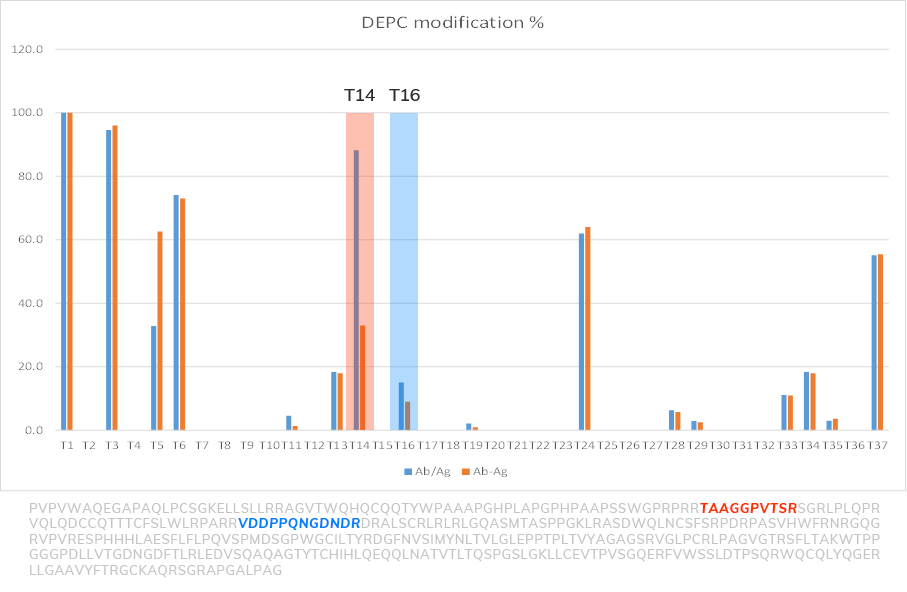

1) DEPC labeling

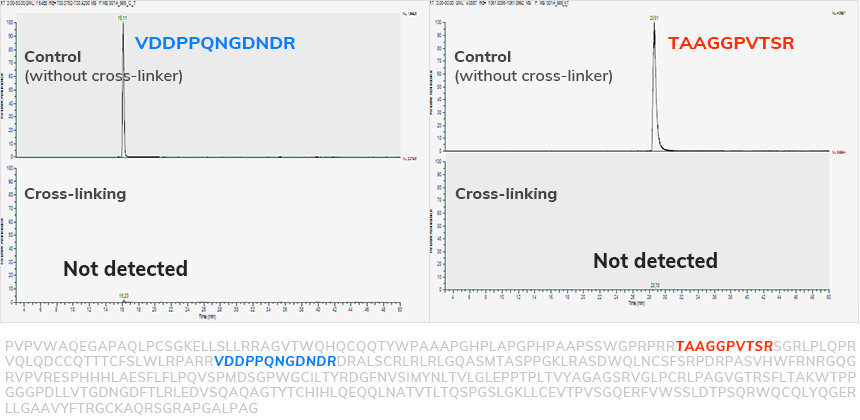

2) Chemical cross link
3) Immuno-affinity peptide screening
좌우로 스크롤하여 내용을 확인하세요.
| Unbinding fraction | Elution fraction (Area) | sequence | ||||
|---|---|---|---|---|---|---|
| Frag# | Res | Area | 1st | 2nd | 3rd | |
| T14 | 180-188 | 1,291,000,000 | 810,600 | 8,799,000 | 11,950,000 | TAAGGPVTSR |
| T16 | 235-243 | 799,700,000 | 2,995,500 | 3,023,000 | 2,819,000 | VDDPPQNGDNDR |
| T21 | 281-288 | 66,900,000 | 1,425,000 | 1,232,000 | 1,367,000 | WQCQLYQGER |
Conclusion
- Download Your Request
Analysis Consulting : 042-384-0702, 070-5014-5710
