PC6-5 : 2-AB labeled charged O-glycan analysis by HILIC-UPLC/ESI-MS

Test Introduction

It is a test item that analyzes the O-glycan structure identification and quantitatively analyzes O-glycan with glycoproteins. The analysis method involves treating β-elimination, then separating O-glycan from glycoprotein, and analyzing O-glycan structure and O-glycan composition through the HILIC-UPLC-MS method via 2-AB labeling.

Sample

  • Biosimilar
  • Biobetter
  • Antibody
  • Antibody-drug conjugates
  • Recombinant protein drug
  • Toxin
  • vaccine

Analysis Process

  • Glycosidase Digestion
  • Labeling
  • UPLC, ESI-MS
    Characterization of peaks
  • Quantitative analysis

Analysis Result

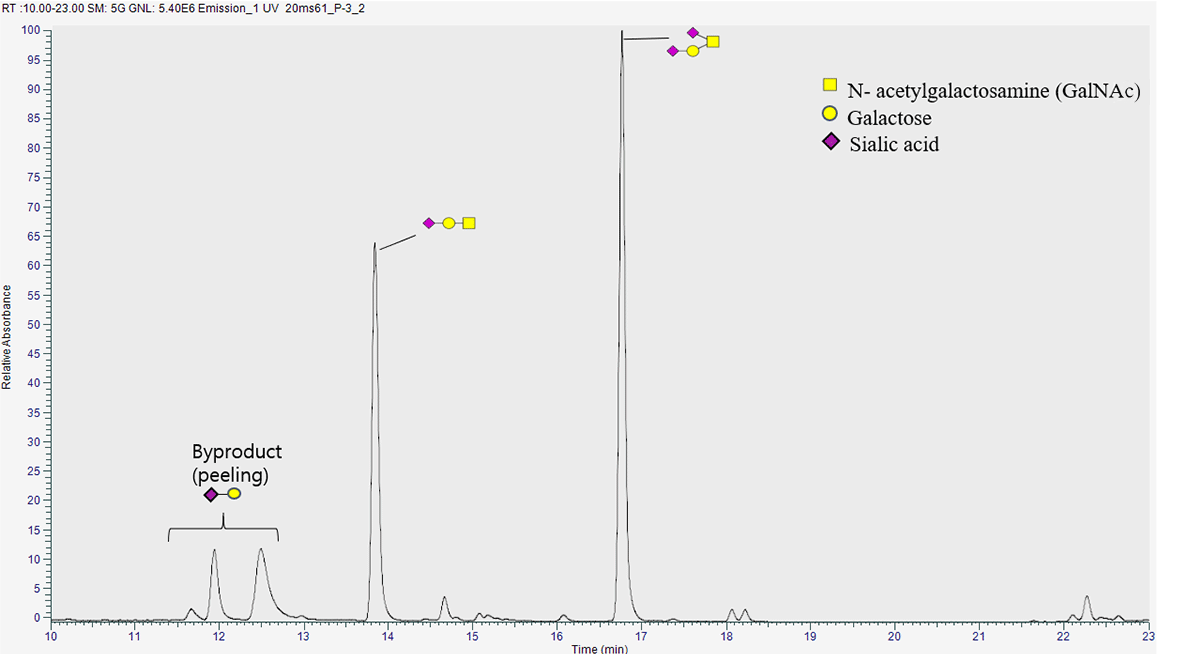

  • HILIC chromatogram RSD : 2.03 (2개 HILIC peak 기준)
  • Average Mass Accuracy : 3.152 ppm
Scroll left or right to see the content.
Theoretical Mass Observed mass
Peak No. Proposed
structure		 m/z Charge m/z RT Area % Area Error (ppm)
1 GalNAc+Gal+SA 793.299 1 793.321 13.84 11,525,514 40.7 3.076
2 GalNAc+Gal+2SA 541.693 2 541.685 16.77 13,270,358 59.0 3.083
